BR-T Thermal Protector 50 150 Degree Overload Bimetal Thermal Protection

BR-T Thermal Protector 50 150 Degree Overload Bimetal Thermal Protection

BR-T Thermal Protector Structure

BR-T series thermal protector is a kind heating protector. At the heart of the device is a bimetal snap-action disc. When the temperature of this disc reaches its pre- calibrated temperature, it snaps open, resulting in an open circuit. This temperature is reached during a fault condition caused by an increase in ambient temperature. After the device breaks the circuit, the system cools and automatically resets allowing power to be restored to the circuit.

BR-T Thermal Protector Applications

BR-T/BR- S series thermal protectors are featured for small size, sensitiveness, perfect air-tightness performance, accuracy. It is mainly used for fractional 0.5hp motor or less, transformers, rectifiers, battery packs, and other household appliances.

BR-T Thermal Protector Open temperature:

50~ 150 with tolerance土5°C; in 5°C increment.

Parameter

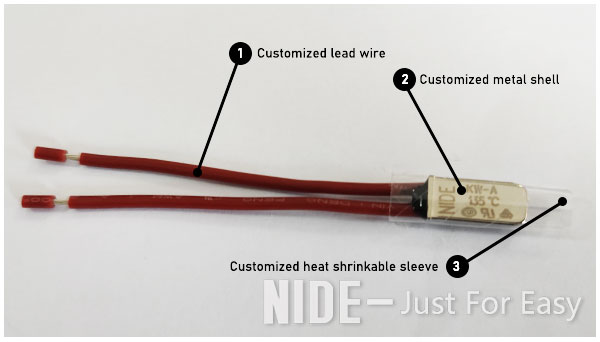

Customized Thermal Protector :

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs

Overload Bimetal Thermal Protector

Household Appliances Thermal Protector

CE Customized Electric Motor Thermal Protector

BR-T Thermal Protector 50 150 Degree Overload Bimetal Thermal Protection Images
